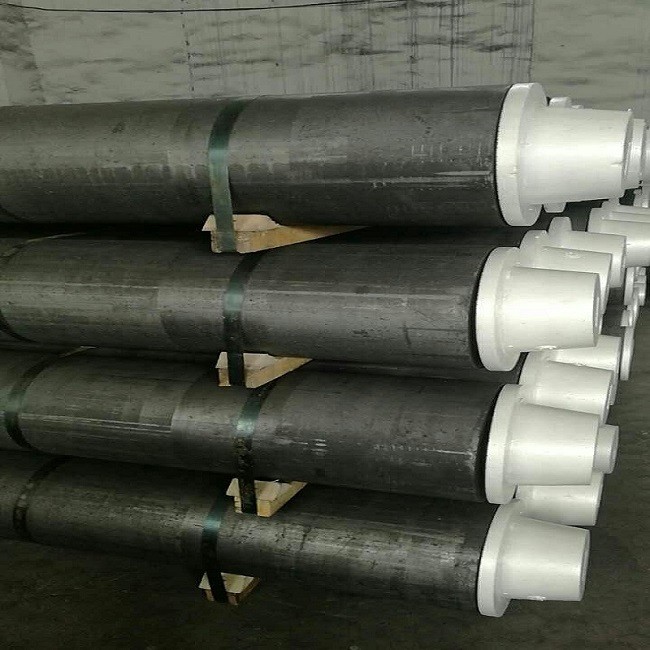

Low resistivity High bulk density SHP graphite electrode

Low resistivity High bulk density SHP graphite electrode

Low resistivity High bulk density SHP graphite electrode
Low resistivity High bulk density SHP graphite electrodeLow resistivity High bulk density SHP graphite electrodeLow resistivity High bulk density SHP graphite electrodeLow resistivity High bulk density SHP graphite electrodeLow resistivity High bulk density SHP graphite electrode
CategoriesSHP graphtie electrode
AlbumView larger image
BrandSD-Molong
ModelSHP
Current Load5500-67000A
Current Density15-25A/cm2
FOB portXINGANG PORT tIANJIN
Terms of PaymentL/C, T/T
Download DOC
Update Time2019-01-20
Detail Information

1.The super high power graphite electrode uses  uses Japanese imports of needle coke as raw materials, in accordance with the Super high power graphite electrode production process,crushing,screening,dosing,kneading,forming,baking,high pressure impregnation,the second time of baking,graphitization and machining refined.

2.Super high power nipple uses Japanese imports of needle coke,three times of impregnation and four times of baking processes.



3.Specification:

ITEM NAME

SPECIFICATION

SHP GRAPHITE ELECTRODE

Resistivity (μΩ.m)

Electrode

5.5-6.0

Nipple

3.5-4.5

Bulk Density(g/cm3)

Electrode

1.68-1.73

Nipple

1.73-1.85

Modulus of rupture(Mpa)

Electrode

10.0-15.0

Nipple

20.0-28.0

Young's modulus(Gpa)

Electrode

10.0-12.0

Nipple

16.0-20.0

Ash(%)

Electrode

0.2

Nipple

0.2

CTE(100-600℃)10-6/

Electrode

1.4-1.7

Nipple

1.0-1.4

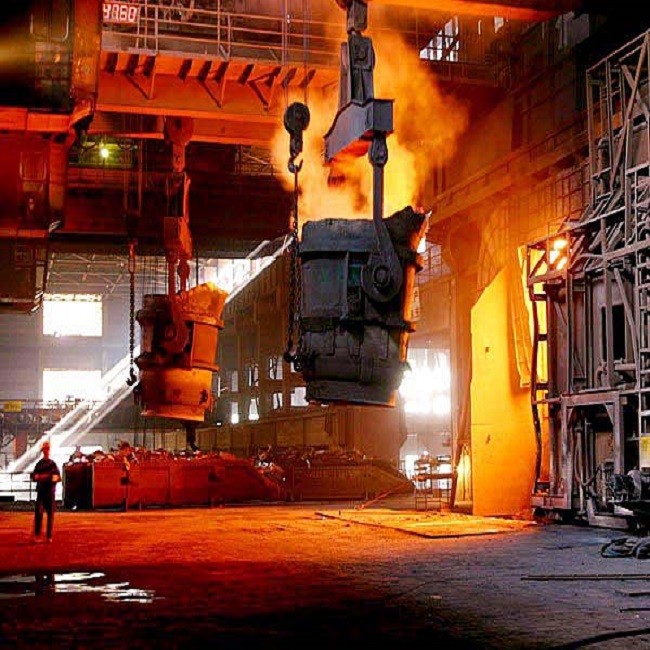

4.SHP graphite electrode use for ladle furnace:

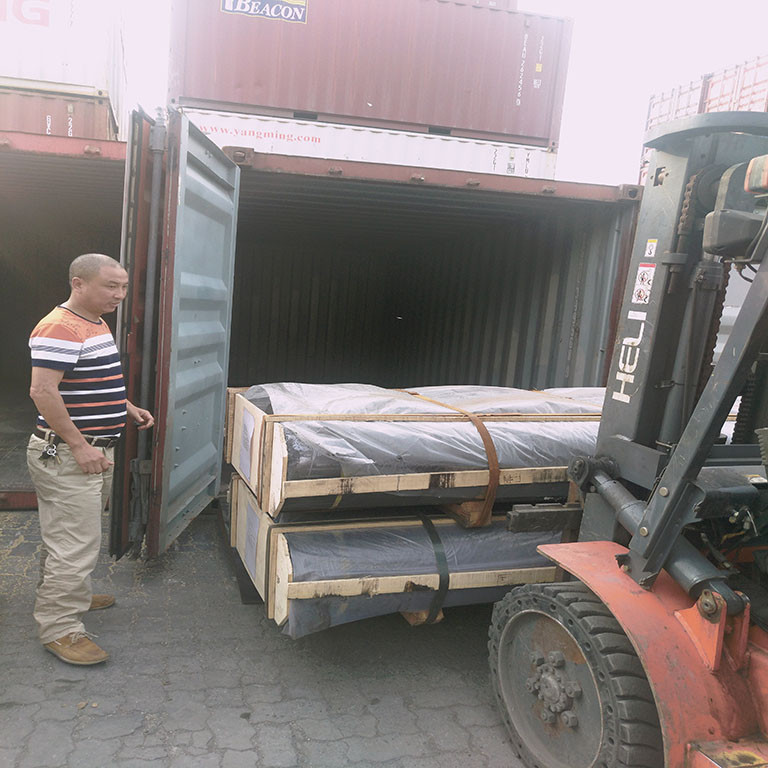

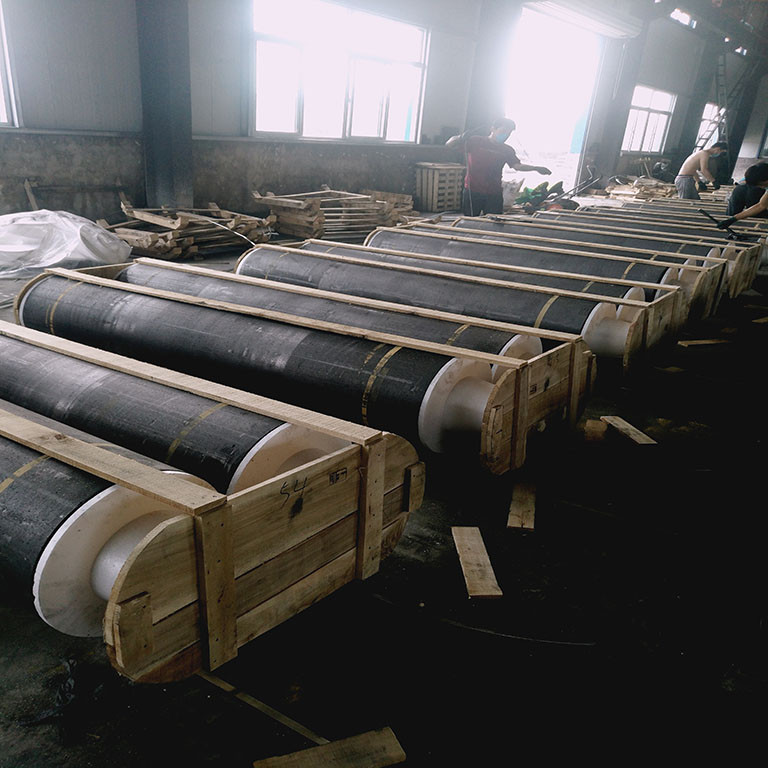

5.GE packing and loading:
